MAZAK INTEGREX J-200

« back

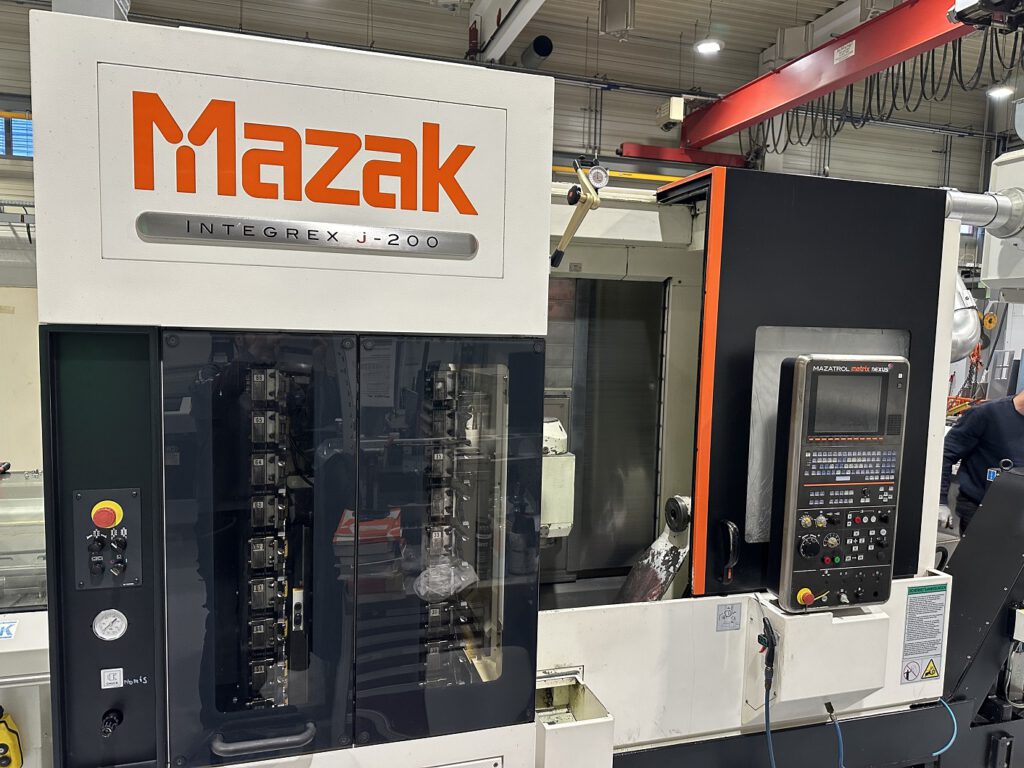

MAZAK INTEGREX j-200 x 500

MAZAK INTEGREX j-200 x 500

CNC Multitasking Machine
MAZAK INTEGREX J-200 500U

Reference No.: 20092

Mfg. year 5/2014

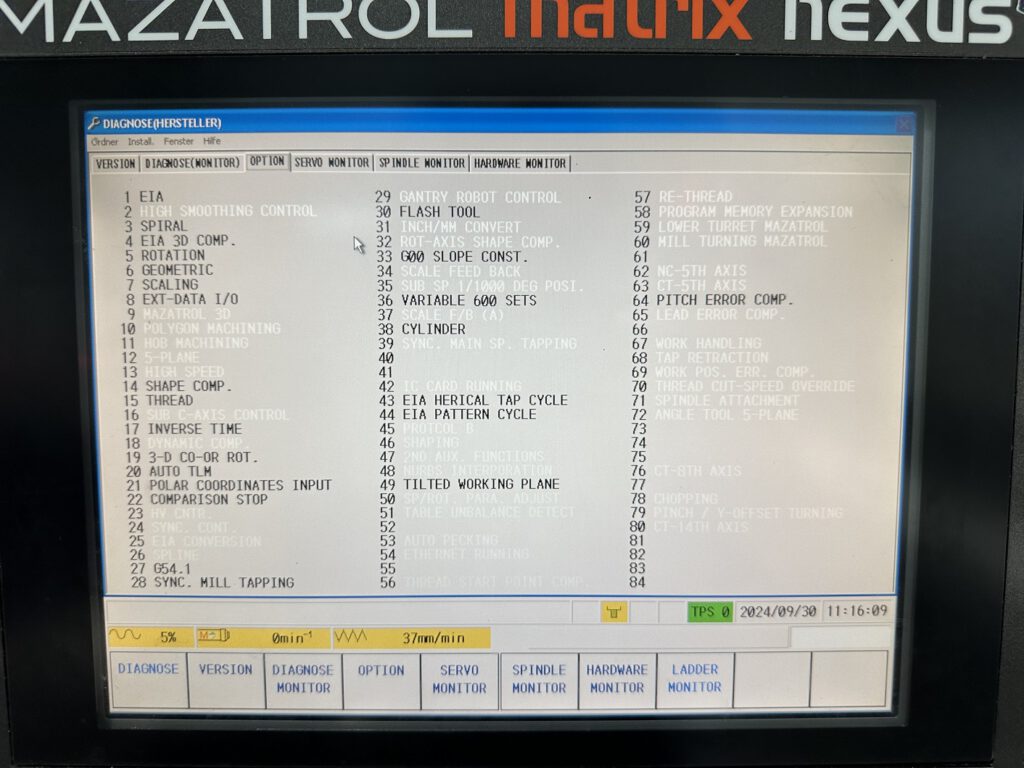

Mazatrol Matrix control
Max. turning diameter 530 mm
Max. turning length 500 mm
Max. bar working capacity 65 mm
movements X/Y/Z 450/200/550 mm
main spindle with increased power 15 kW (option)
max. spindle speed 5.000 rpm
C-axis 360°, 0.0001° indexing
Spindle bore 76 mm
Spindle bearing diameter 110 mm

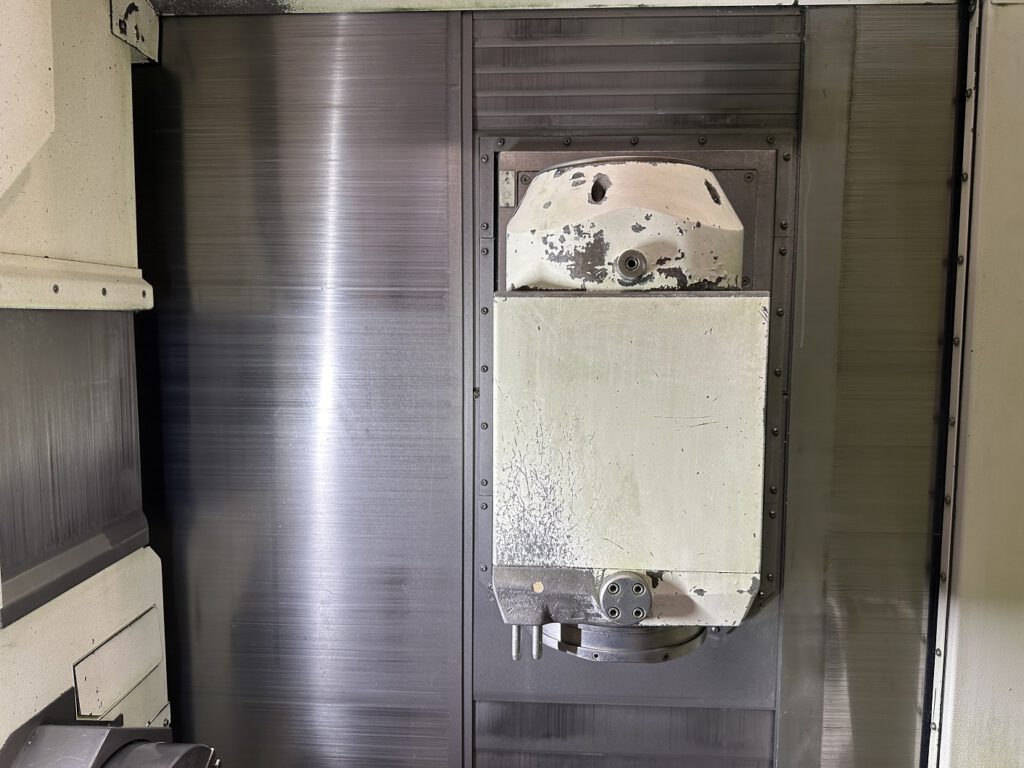

Milling spindle max. speed 12.000 rpm
B-axis -30°-190°, 1° indexing
Capto C6
tool magazine for 72 tools
Max. tool diameter 90 mm
Max. tool length 210 mm

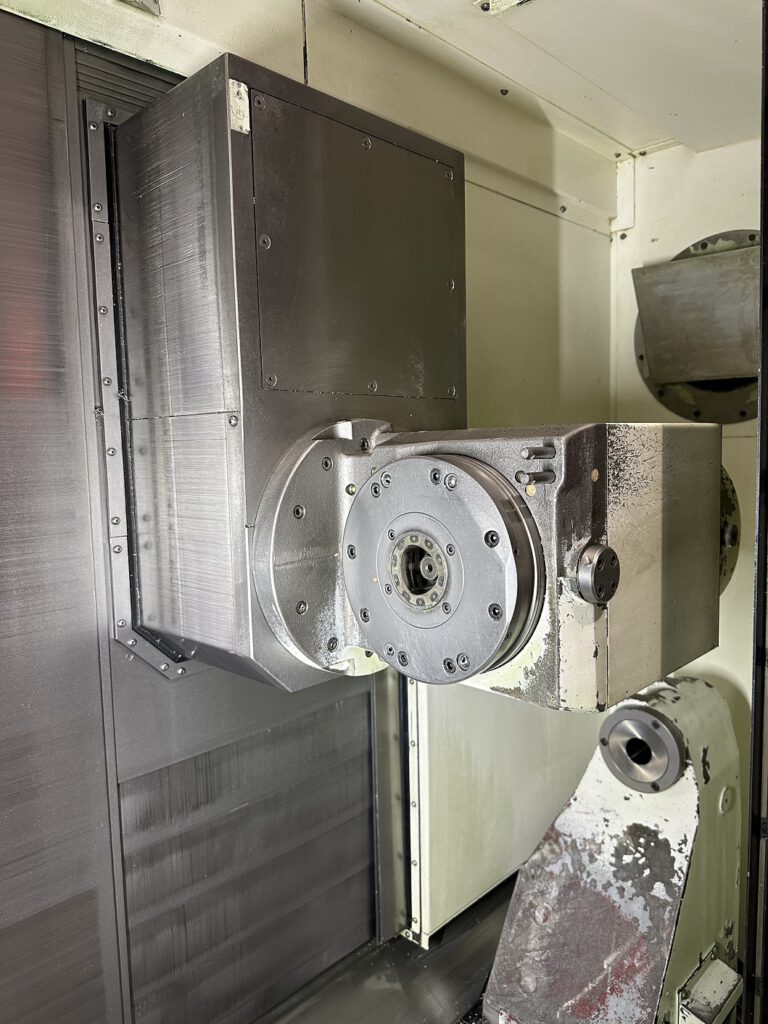

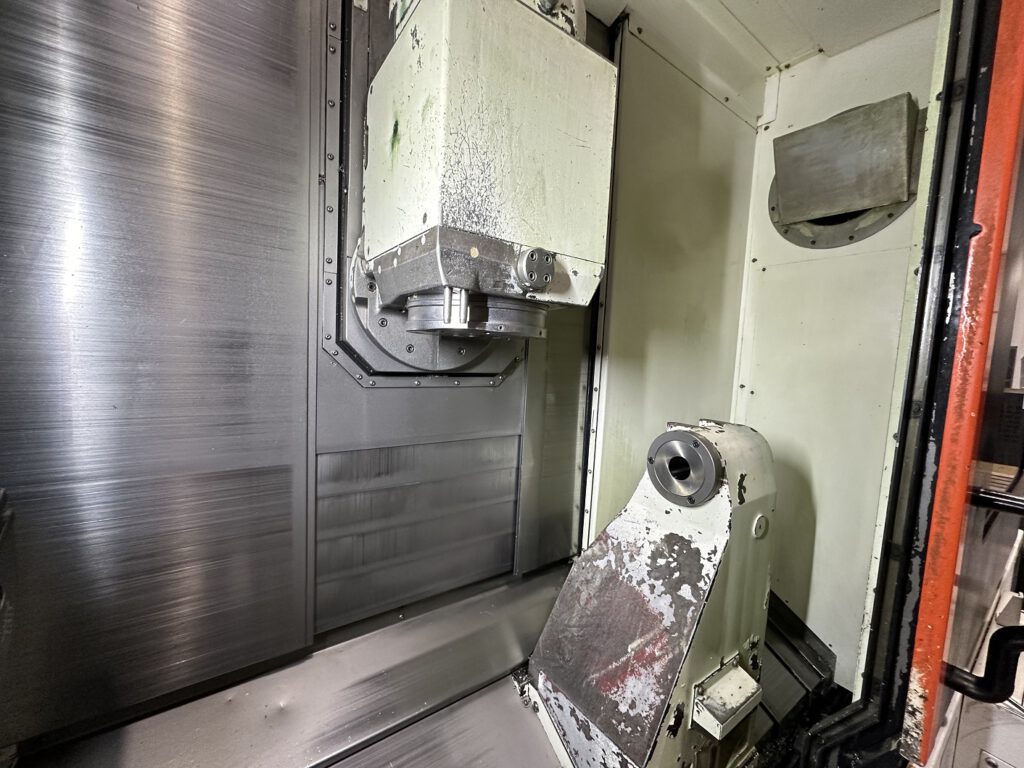

tailstock MT5

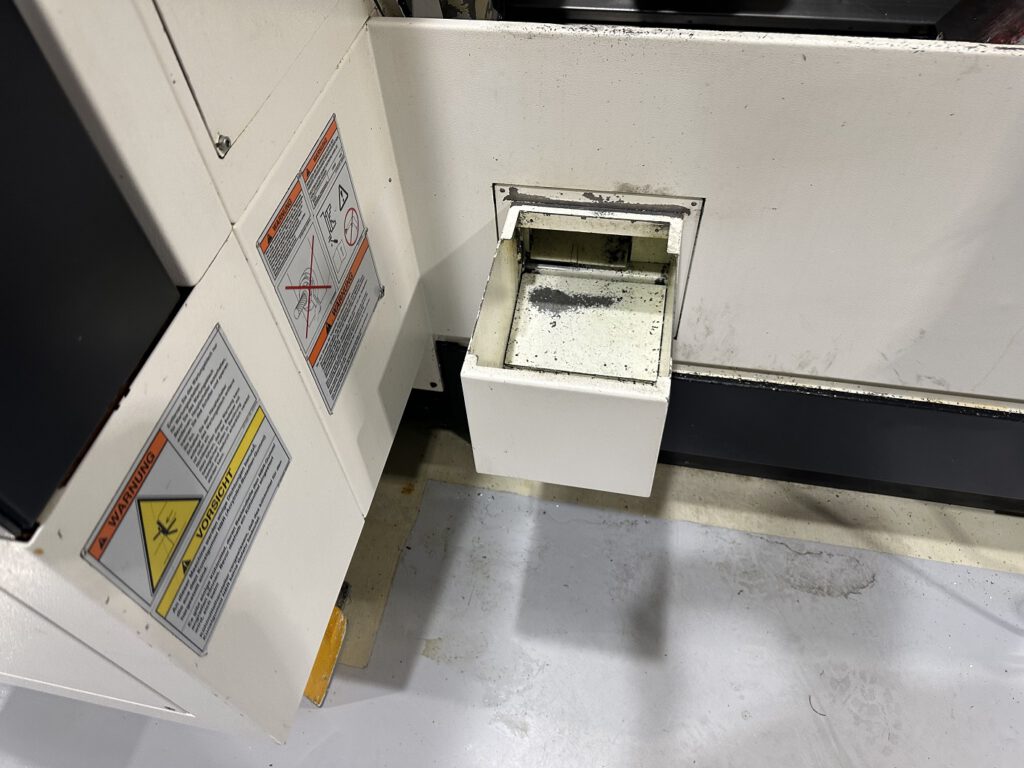

automatic parts catcher (D:65 x L:120 x 2,5KG)
swarf conveyor, Mayfran

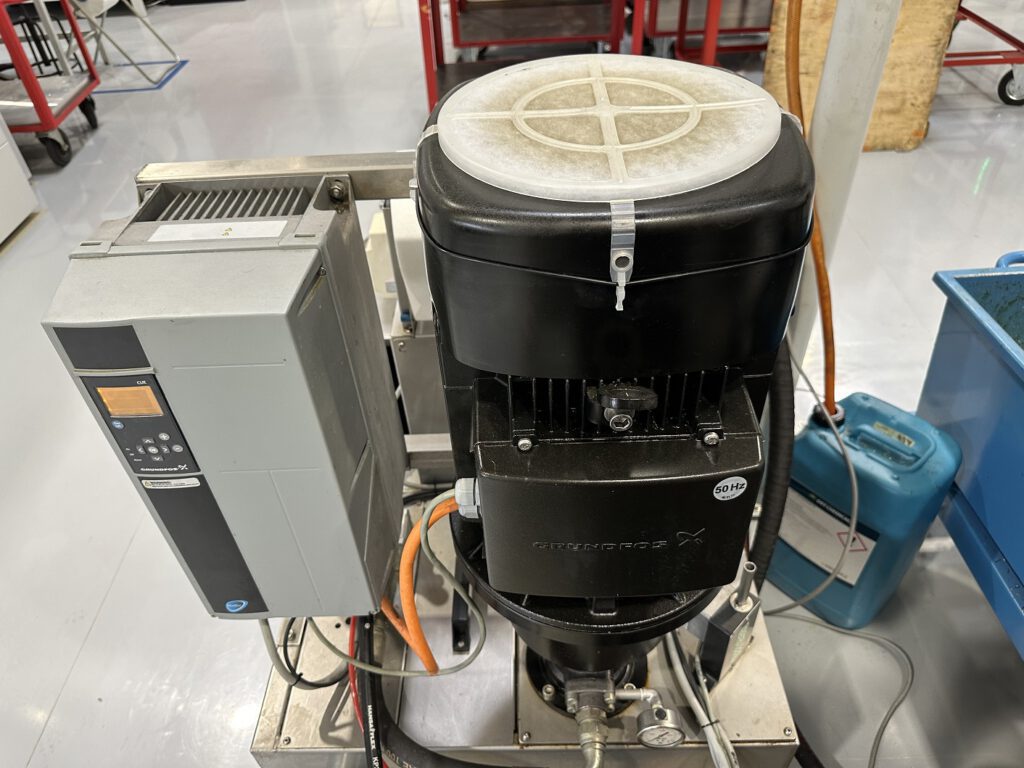

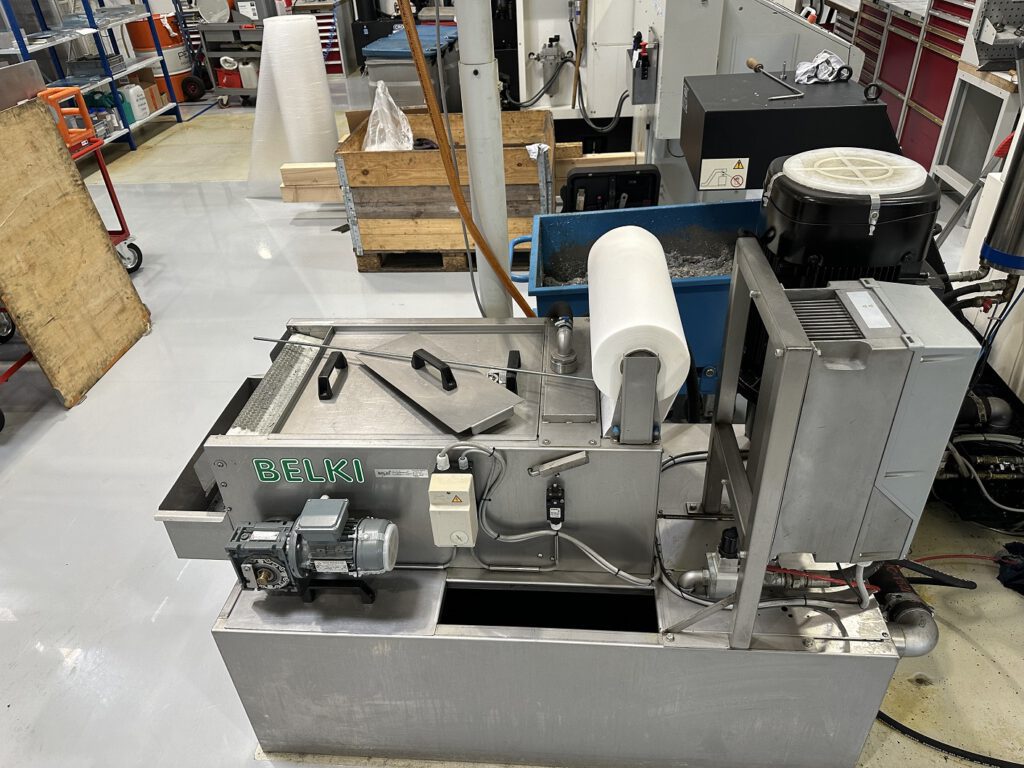

high pressure coolant 15 bar incl. simultan flood coolant 5 bar

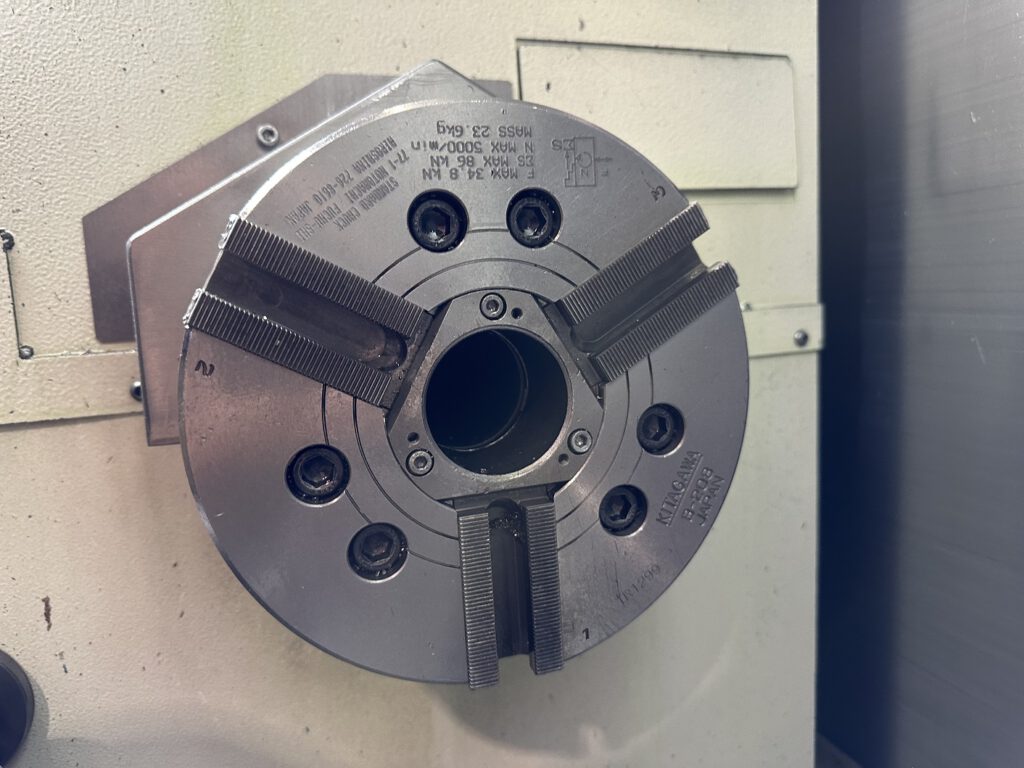

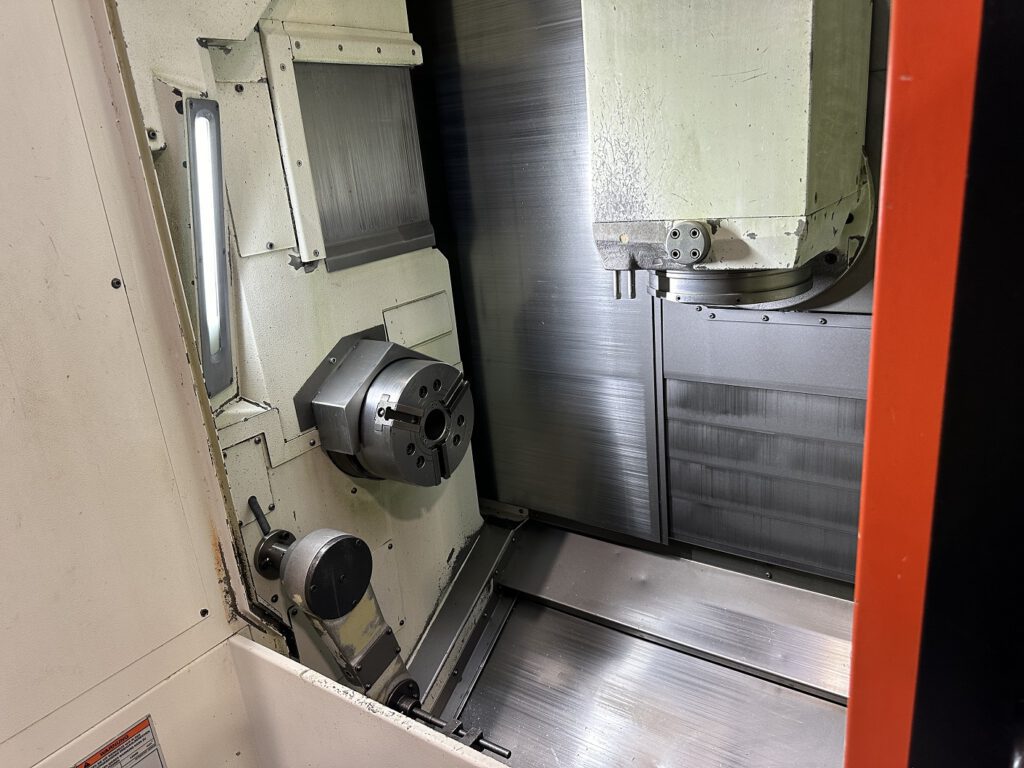

collet chuk, Hainbuch Spanntop mini 65
synchronized MillTapping
slope constant
Turn Mill funciton Mazatrol
Signal lamp

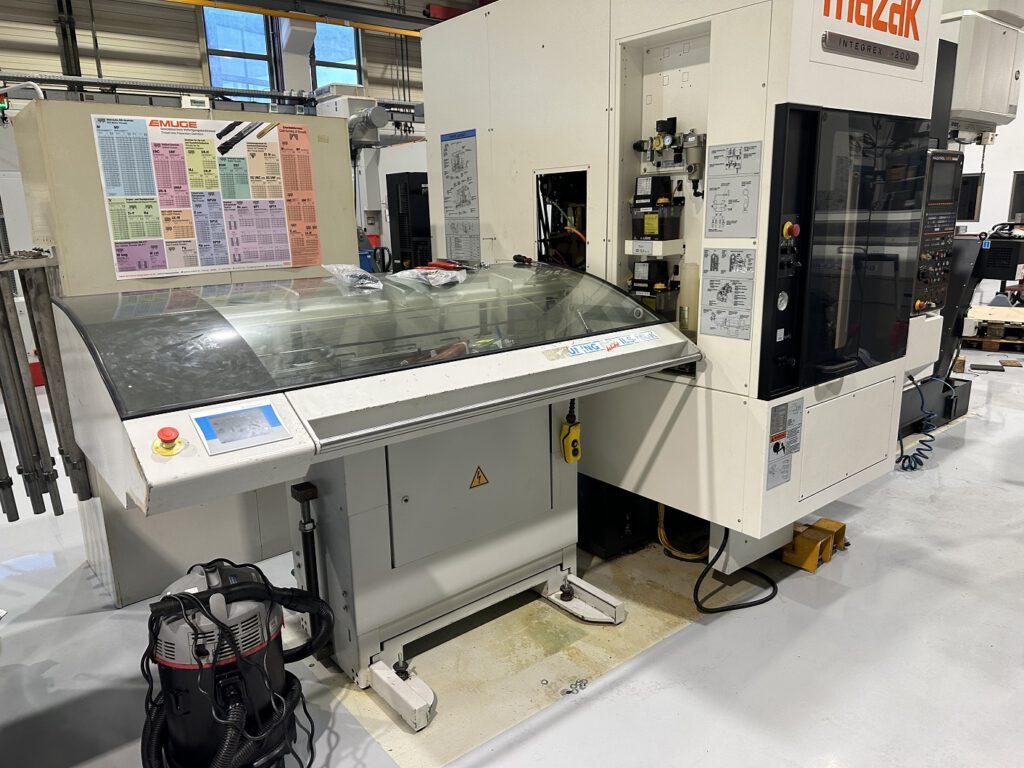

1 off. Irco barfeeder ILS-MUK-7012
CE-mark
